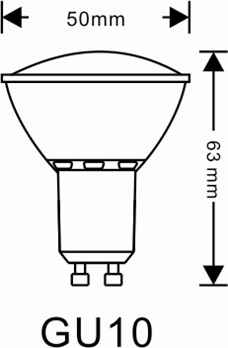

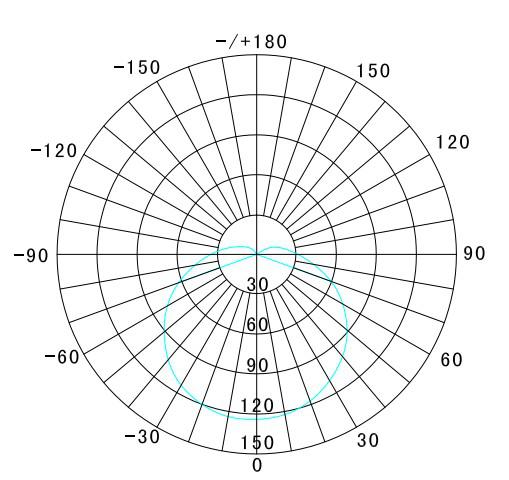

Temperature Characteristics Electrical Characteristics 25℃ Ambient Temperature Temperature Humidity I nput Voltage：AC85-265V 50/60Hz Operating: -20~+40℃ Operating: 10%-80% Power efficiency: ≥0.80 Storage:-40~+85℃ Storage: 10%-80% Dimensions Light Distribution Curve   Technical Parameters Model No. | Power (W) | Driver Type | LED Type | LED QTY (PCS) | CCT (K) | Lumens (lm) | Base Type | CRI (Ra) | Beam Angle | GU5.3-DC011-2835T5W-WV | 5 | Isolated Driver | COB | 1 | 2800-6500 | 400LM±10% | GU10 | >80 | 120o | GU10-DC031-2835T3W-WV | 3 | Isolated Driver | COB | 1 | 2800-6500 | 250±10% | GU10 | >80 | 120o |

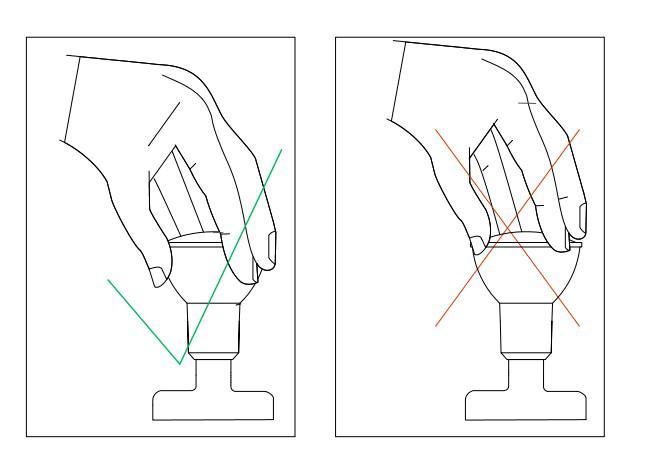

CCT Range: WW: 2800-3200K , NW: 4000-4500K , PW: 6000-6500K Installation Installation instruction and Savety tips: 1. Electricity must be cut off power before replacement, in order to avoid electric shock or burn out. Make sure bulb base match the socket. 2. Hold bulb housing as below while installing or uninstalling bulb.
|
