Electrical Characteristics 25℃ Ambient Temperature Temperature Humidity Input Voltage:DC12V 50/60Hz Operating: -20~+40℃ Operating: 10%-80% Power efficiency: ≥0.8 Storage:-40~+85℃ Storage: 10%-80%
Technical Parameters Model No. 型号 | Power 功率(W) | Driver Type 电源类型 | LED Type 灯珠型号 | LED QTY 灯珠(PCS) | CCT 色温(K) | Lumens 光通量(lm) | Base Type 灯头类型 | CRI 显色指数(Ra) | Beam Angle 发光角度 | GU10-TP041-2835T3W-WV | 3 | Isolated Driver 隔离电源 | COB | 1 | 2800-6500 | 250LM±10% | GU10/GU5.3/MR16 | ≥80 | 36°/60° | GU10-TO41-2835T5W-WV | 5 | Isolated Driver 隔离电源 | COB | 1 | 2800-6500 | 400LM±10% | GU10/GU5.3/MR16 | ≥80 | 36°/60° | GU10-TO41-2835T6W-WV | 6 | Isolated Driver 隔离电源 | COB | 1 | 2800-6500 | 450LM±10% | GU10/GU5.3/MR16 | ≥80 | 36°/60° |

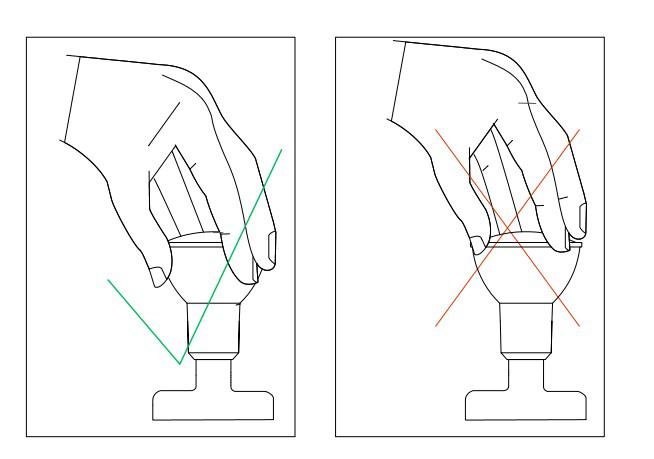

Installation Installation instruction and Savety tips: 1. Electricity must be cut off power before replacement, in order to avoid electric shock or burn out. Make sure bulb base match the socket. 2. Hold bulb housing as below while installing or uninstalling bulb.
|
